Reciprocating High Air Compressor

One of the most prominent dealers, suppliers, distributors of reciprocating air compressors in PCMC, Pune, Maharashtra, offers Ace Engineering Solutions. Buy an air compressor in Pune for an affordable cost.

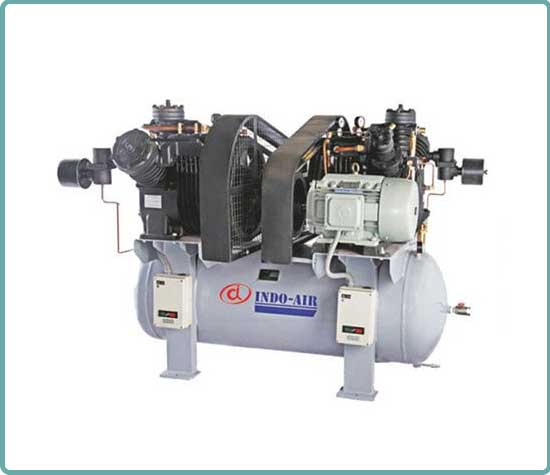

Two-stage and three-stage, two-cylinder and three-cylinder variants of INDO-AIR's multi-stage, high-pressure air compressors are both offered. Solid end connecting rods, an overhung crankshaft for durability and ease of maintenance, intercooling that is very thermally efficient, splash lubrication that is completely dependable, and a balanced V-type structure for quiet, vibration-free running. When using the final stage's small diameter piston, cross-head cylinders are employed to provide greater support and space for a sufficient Con Rod bushing. It's one of the most common types of compressors used for various applications ranging from small-scale home use to industrial processes.

services-1
Factors to consider in an Air Compressor
  • How often the compressor is used and how it is used.
  • Short list in-plant compressed air application. Make a list of equipment in the plant Consuming compressed air and expected air flow requirement in ‘CFM’ and the required pressure in ‘PSI’
  • Consider the duty cycle of your compressors as most compressors are not meant to run all the time.
  • Decide on the size/capacity of the tank. The more use of equipments means the need for larger tank. Choosing a larger tank than the need will ensure optimum use of the Compressor.
  • Consider 10% more capacity compressor to compensate the air misuse or leaks and pressure drop in the system.
  • Decide on the continuous run style or start-stop style compressor. ( A compressor that runs continuously, but only compresses air as per demand or a compressor that fills the tank and stops until low pressure signals a start).
  • Consider the accessory which is to be installed with each compressor.
  • Other like maintenance, life expectancy, trouble shooting (also know the manufacture network/ regional offices), repair costs, etc.
Standard Scope of Supply for Complete Package
  • Bare compressor
  • Air Suction Filter
  • Air Receiver
  • Receiver Fittings like: Safety Valve, Pressure Gauge, Service Valve, Drain Valve, Pressure Switch / Auxiliary Valve
  • ASSC / CSC Regulation
  • V-belts & Belt Guard
  • Motor Pulley & Motor Slide Rail
  • Motor & Starter
Technical Specification
MODEL MOTOR NO. OF
CYL. 		RPM RECEIVER MAX. PRESSURE PISTON DISPL
HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR/MIN
IA 261 3.0 2.20 2 675 5.30 150 500 35.15 7.60 0.210 210
IA 37T2 7.5 5.50 2 530 10.60 300 500 35.15 24.00 0.680 680
IA 37T2 10.0 7.50 2 710 10.60 300 500 35.15 32.25 0.920 920
IA 37T2 12.5 9.30 2 800 10.60 300 500 35.15 36.36 1.030 1030
IA 45T2 15.0 11.00 3 760 17.66 500 500 35.15 41.80 1.180 1180
IA 45T2 15.0 11.00 3 650 17.66 500 1000 70.30 35.75 1.010 1010
IA 45T2 20.0 15.00 3 900 17.66 500 500 35.15 49.50 1.400 1400
IA 45T2 20.0 15.00 3 900 17.66 500 600 42.18 49.50 1.400 1400
IA 45T2 20.0 15.00 3 900 17.66 500 800 56.25 49.50 1.400 1400
IA 45T2 20.0 15.00 3 875 17.66 500 1000 70.30 48.00 1.360 1360
IA 45T2TWIN 20+20 15+15 3+3 900 17.66 500 500 35.15 99.00 2.800 2800
IA 505T2 15.0 11.00 3 600 17.66 500 375 26.36 55.00 1.560 1560
IA 505T2 20.0 15.00 3 750 17.66 500 375 26.36 68.00 1.930 1930
IA 505T2 25.0 18.00 3 900 17.66 500 375 26.36 81.80 2.310 2310
IA 505T2WIN 20+20 15+15 3+3 750 17.66 500 375 26.36 136.00 3.860 3860
IA 505TK 20.0 15.00 3 650 17.66 500 425 30.00 68.00 1.926 1926
IA 505TK 25.0 18.00 3 800 17.66 500 425 30.00 85.00 2.407 2407
IA 505TK 30.0 22.00 3 900 17.66 500 425 30.00 99.00 2.804 2804
