Auxillary Equipments

  Home Auxillary Equipments

Auxillary Equipments

Vacuum pump is an universal design with the feature to convert it to a single stage compressor.

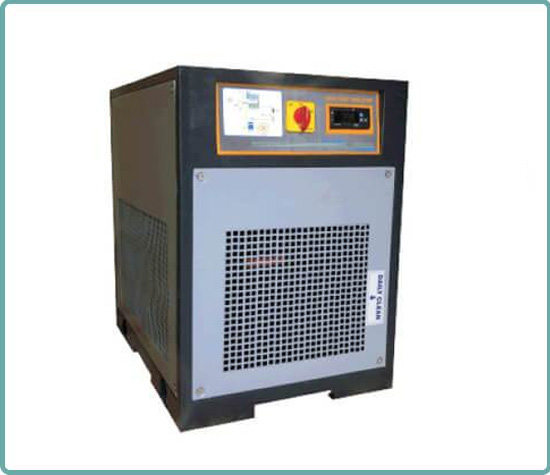

Refrigeration Air Dryer Medium Pressure
services-1

USER INDUSTRIES

  • Pneumatic Press
  • Road Building Machines
  • Ceramic
  • Pneumatic Tools
  • Ore Processing
  • Rubber Factories
  • Steel Fabrication
  • Automobiles
  • Foundries
  • Textiles and Pharmaceuticals
  • Service Stations, etc.

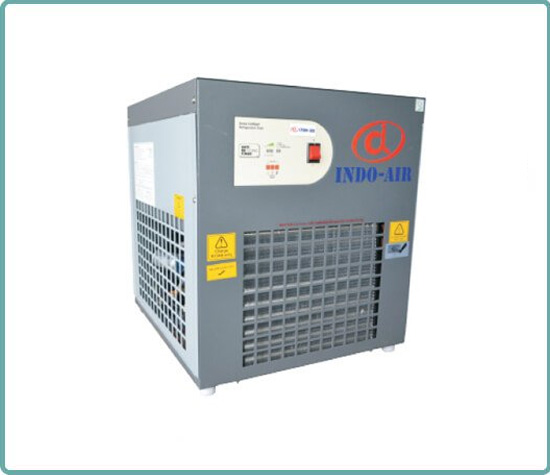

Refrigeration Air Dryer High Pressure

USER INDUSTRIES

  • Pet Bottling
  • Air Blast Circuit Breakers
  • Pharmaceuticals
  • Gas Transmission & Distribution
  • Defence Establishments
  • Shipyards, Oil Exploration
  • Pneumatic Testing
  • Engine Starting, etc.
services-1
Technical Specification of Refrigeration Air Dryer Medium Pressure
MODEL CFM Working pressure
Kg/cm 2 		Conn. BSP Refrigerant Power Supply
v/ph 		Condensor
type 		Normal Power Consumption kw Length
mm		 Width
mm		 Height
mm 		Weight
kg
IAD 015-16 15 16 ½" R 134a 220/1 Air 0.19 400 500 550 32
IAD 025-16 25 16 ½" R 134a 220/1 Air 0.19 400 500 550 32
IAD 045-16 45 16 ½" R 134a 220/1 Air 0.37 400 500 550 35
IAD 060-16 60 16 ¾" R 134a 220/1 Air 0.37 550 550 730 60
IAD 080-16 80 16 ¾" R 134a 220/1 Air 0.60 550 550 730 65
IAD 100-16 100 16 1 ½" R 134a 220/1 Air 0.60 700 750 900 78
IAD 150-16 150 16 1 ½" R 22 220/1 Air 1.40 700 750 900 90
IAD 200-16 200 16 1 ½" R 22 220/1 Air 1.40 700 750 900 92
IAD 250-16 250 16 1 ½" R 22 220/1 Air 1.70 700 750 900 155
IAD 300-14 300 14 2" R134a/R 22 440/3 Air 1.70 900 770 1250 155
IAD 400-14 400 14 2" R134a/R 22 440/3 Air 2.30 1000 800 1500 164
IAD 500-14 500 14 3" R134a/R 22 440/3 Air 2.30 1500 1500 1750 250
IAD 600-14 600 14 3" R134a/R 22 440/3 Air 3.10 1500 1500 1750 250
Technical Specification of Refrigeration Air Dryer High Pressure
MODEL CFM Working pressure
Kg/cm 2 		Conn. BSP Refrigerant Power
Supply v/ph 		Condensor
type 		Normal Power
Consumption kw		 Length
mm		 Width
mm		 Height
mm 		Weight
kg
IAD 025-40 25 40 ½" R 134a 220/1 Air 0.19 400 500 500 40
IAD 045-40 45 40 ½" R 134a 220/1 Air 0.19 400 500 500 45
IAD 060-40 60 40 ¾" R 134a 220/1 Air 0.37 550 550 730 65
IAD 080-40 80 40 ¾" R 134a 220/1 Air 0.37 550 550 730 70
IAD 100-40 100 40 1 ½" R 134a 220/1 Air 0.64 700 750 900 90
IAD 150-40 150 40 1 ½" R 22 220/1 Air 0.64 700 750 900 105
IAD 200-40 200 40 1 ½" R 22 220/1 Air 1.40 700 750 900 120
IAD 250-40 250 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130
IAD 300-40 300 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130
IAD 400-40 400 40 1 ½" R 22 220/1 Air 1.40 700 750 900 130

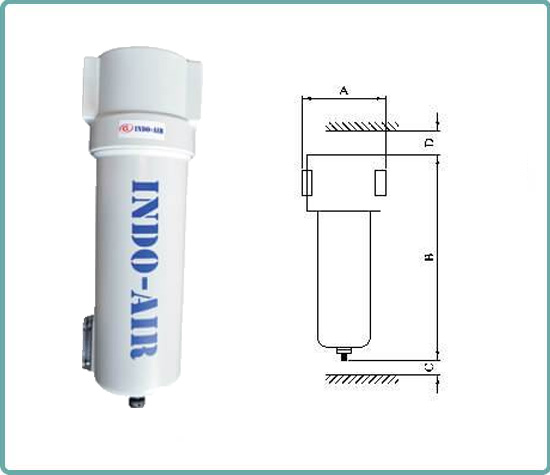

Air Filters
services-1
  • Pre Filter
  • After Filter
  • Carbon Filter
MODEL Element
Grade 		Drain Type Pipe
Size BSP/NB 		Flow Rate
(scfm) 		Condensor
Type 		Housing Dimensions
(mm)		 Weight
(kgs)
A B C D
IAF 024 P/A/C IA / EA ¼" 15 Air 72 193 100 - 1
IAF 100 P/A/C IA / EA ½" 60 Air 96 237 150 - 2
IAF 250 P/A/C IA / EA 31" 150 Air 117 465 300 - 4
IAF 600 P/A/C IA / EA 1 ½" 350 Air 117 530 425 - 4
IAF 851 P/A/C IA / EA 2" 500 Air 170 722 480 - 11
IAF 1210 P/A/C IA / EA 2" 710 Air 170 722 550 - 11
IAF 1810 P/A/C IA / EA 3" 1065 Air 235 760 550 - 20
IAF 2200 P/A/C IA / EA 4" NB 1200 Air 440 1325 - 800 75
IAF 2600 P/A/C IA / EA 4" NB 1500 Air 650 1500 - 800 85
IAF 3400 P/A/C IA / EA 6" NB 2000 Air 650 1500 - 800 85
